Processor
Number of processor cores 6
Processor supports ECC No
Efficient core boost frequency 3.3 GHz
Built-in processor Yes
Performance core boost frequency 4.5 GHz
Processor family Intel® Core™ i3
Processor threads 8
Processor cache 10 MB
Processor i3-1315U
Processor manufacturer Intel
Performance cores 2
Processor boost frequency 4.5 GHz
Efficient cores 4
Processor generation Intel Core i3-13xxx
Memory
Maximum RAM 64 GB
Supported memory speed 5200 MHz
Number of memory slots 2
Memory voltage 1.1 V
Memory channels Dual-channel
Supported memory type DDR5-SDRAM
Memory type SO-DIMM
Supported storage drive sizes 2.5, M.2
Storage drive interface PCI Express, Serial ATA III
Supported storage drives HDD & SSD
Number of supported storage drives 3
NVMe Yes
Installed memory drivers No
Graphics Built-in graphics card model Intel® UHD Graphics
Graphics card family Intel
Built-in graphics adapter Yes
Audio Built-in speakers No
Network WLAN No
LAN controller Intel® I219, Intel I226-LM
Ethernet/LAN Yes
Ports and interfaces Number of DisplayPort ports 1
Microphone input Yes
HDMI version 2.0b
Number of serial ports 1
Direct current (DC) input Yes
DisplayPorts version 1.4
Number of Ethernet LAN ports (RJ-45) 2
Number of USB 2.0 ports 2
USB 3.2 Gen 2 (3.1 Gen 2) number of Type A ports 2
Number of HDMI ports 1
Number of VGA (D-Sub) ports 1
Headphone outputs 1
USB 3.2 Gen 1 (3.1 Gen 1) number of Type A ports 4
Design Panel mounting interface 75 x 75, 100 x 100 mm
Slot type Cable lock Kensington

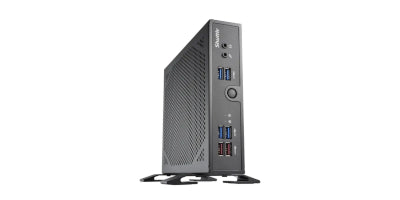

Product type Mini-PC Barebone
Power button Yes
Product colour Black
Cable lock slot Yes
VESA mount Yes
LED indicators HDD, power
Case material Steel
Cooling Passive
Case type 1.3L size PC
Features Audio chip RealTek ALC888S
Trusted Platform Module (TPM) version 2.0
Trusted Platform Module (TPM) Yes
Number of supported processors 1
BIOS type UEFI AMI
Technical details
Compliance certificates BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus
Software
Supports Windows operating systems Windows 10, Windows 11
Supported Linux operating systems Yes
Installed operating system No
Sustainability Sustainability certificates ENERGY STAR, ErP
Sustainability compliance Yes
Logistics data Commodity code (HS) 84733080
Power AC adapter output current 1.6 A
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Number of power supplies 1
Power supply output voltage 19 V
Power 90 W
Power supply type External AC adapter
Operating conditions
Operating temperature 0 - 40 °C
Relative humidity when operating 10 - 90%
Weight and dimensions
Weight 1.6 kg
Package weight 2.3 kg
Height 39.5 mm
Depth 165 mm
Width 200 mm
Contents of the package
Power cable included Yes
Quick start guide Yes
AC power adapter Yes
